gesturedevelop| gesturedevelop |

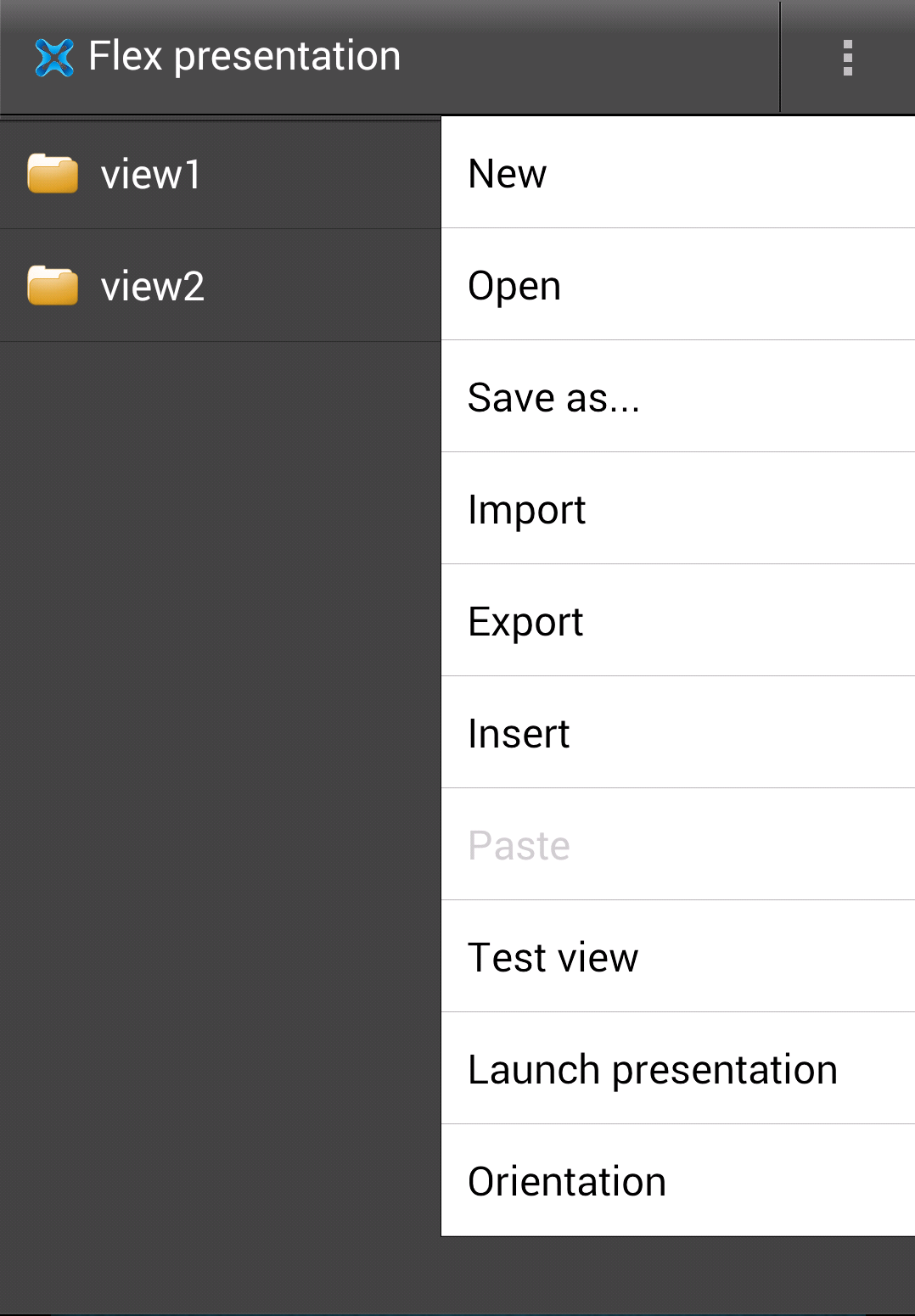

| Menu |
 - New : creates a new blank project (fxptxml) - Open : open a file fxptxml - Save as : save the file (fxptxml) - Import : import a file fxptp (fxptxml + image + video) - Export : export a file to fxptp (fxptxml + image + video - Paste : paste a view (slide) on top of the project, or VGroup, HGroup, TextArea, Image, Video - Test view : to test the view - Presentation : launch the presentation - Orientation : Setting the screen orientation : auto, portrait or landscape - Launch at startup : to start the presentation at application startup - link : a link to gesturedevelop.com or Google Play - Help : Help online - Close : close the current tab - Close all : close all tabs |
| Components |
|
- View : a slide in the presentation - VGroup : vertical group, lays out other components in a single horizontal row - HGroup : horizontal group, Lays out other components in a single vertical column - TextArea : text field - Image : image - Video : video (flv or mp4(H.264)) |

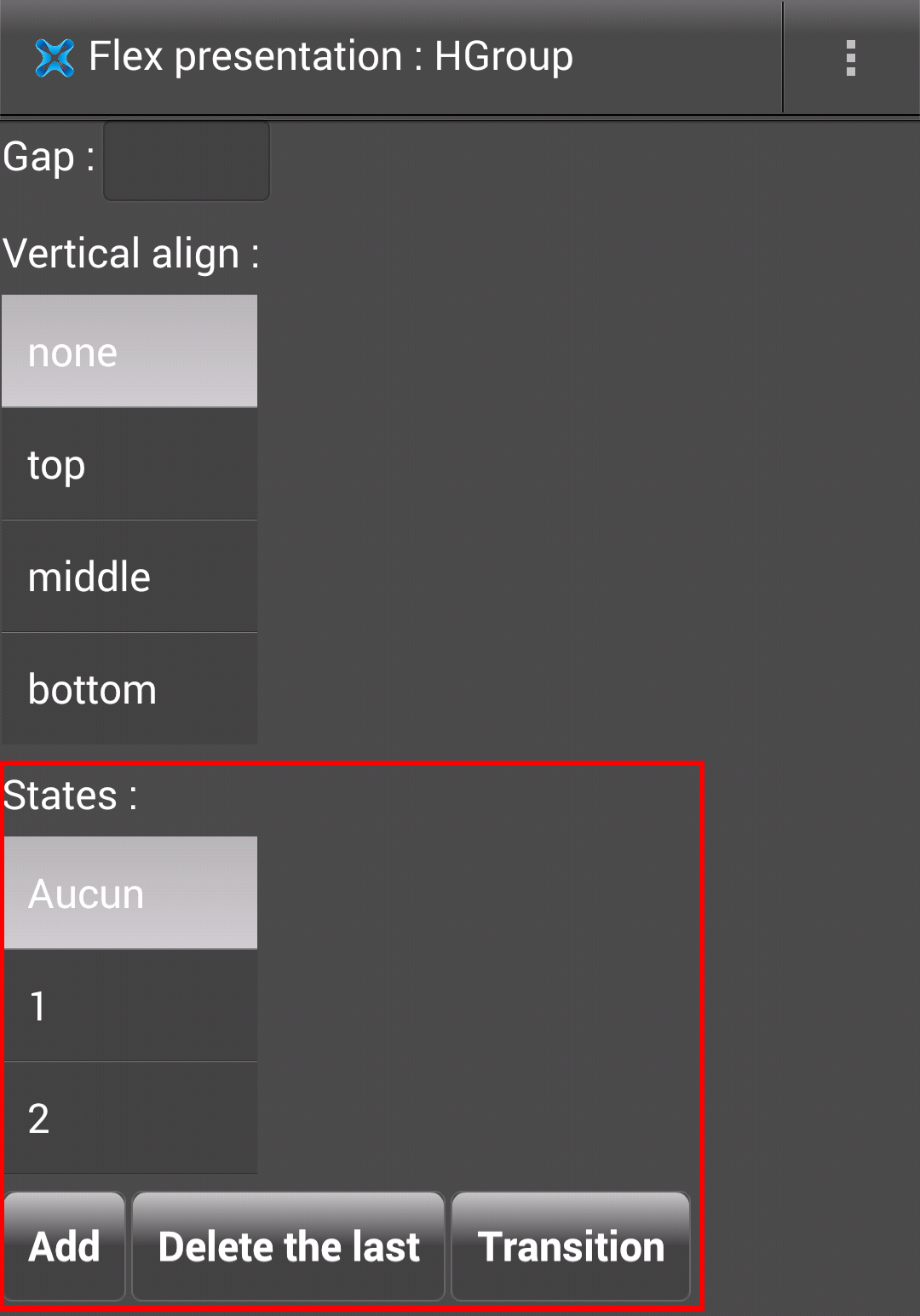

| States |
 Different states of a slide (view) : click to reveal next state - Add : create a new state - Delete the last : delete the last state - Transition : apply a transition to the selected state |

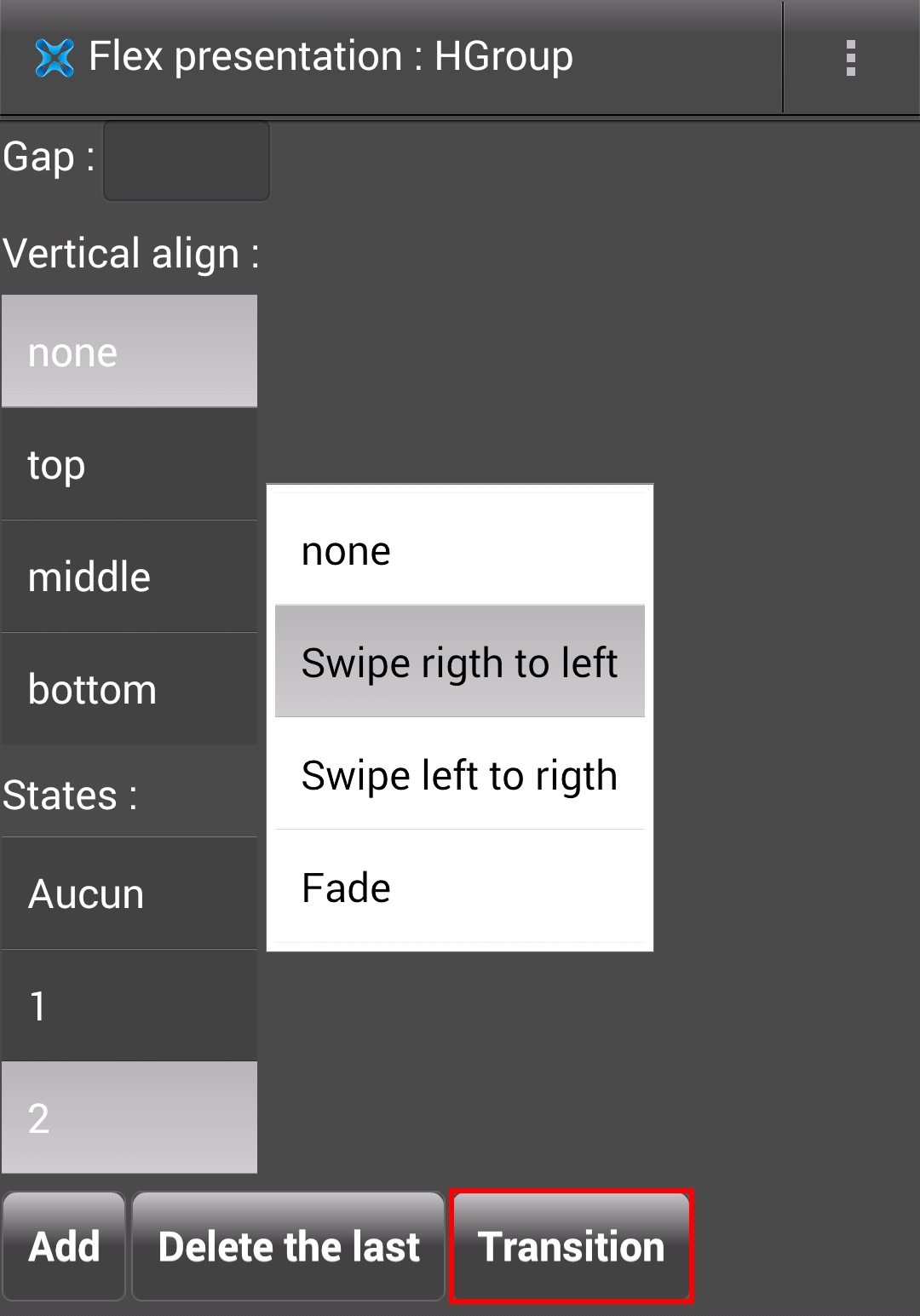

| Transition |
 Transition to apply to the state - None : No transition - Moving from right to left : the component moves from right to left - Moving from left to right : the component moves from left to right - Fade : the component appears gradually |

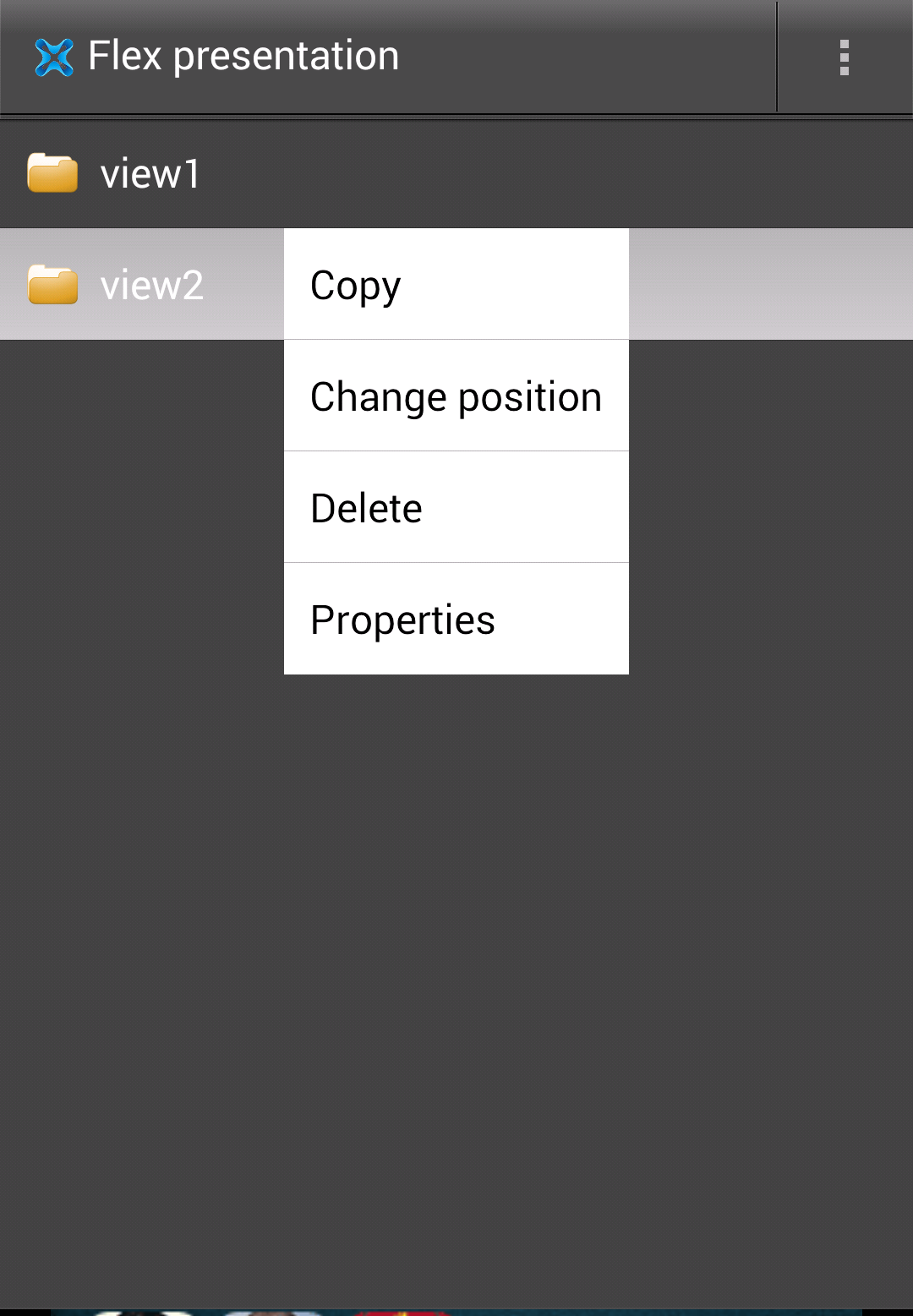

| Long Press |
 - Copy : Copy a view (slide) on top of the project, or VGroup, HGroup, TextArea, Image, Video - Change the position : to change a component position - Delete : Delete a component - Properties : component properties : size, state, url, color... |

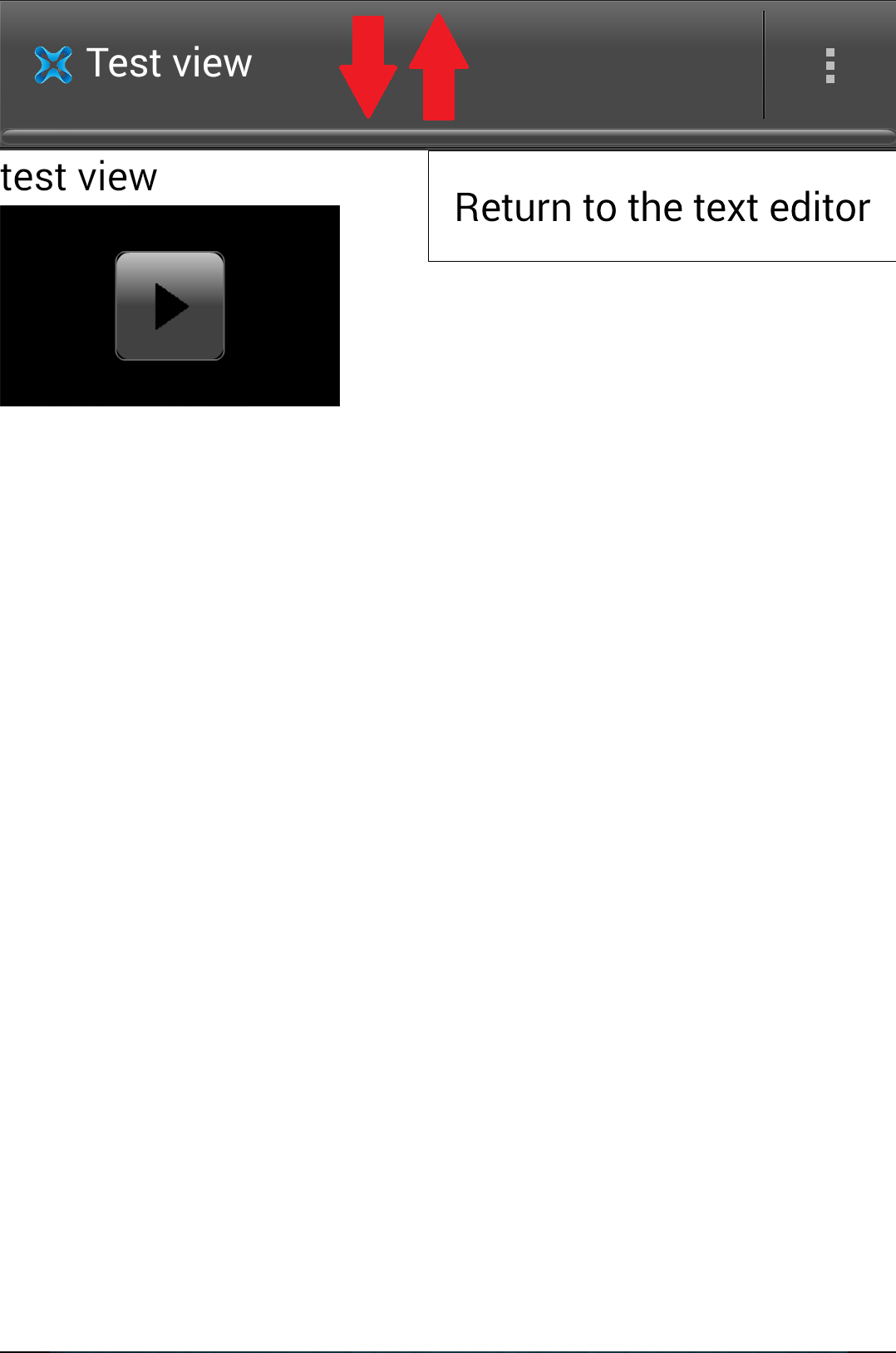

| Presentation |
 - Click : click to reveal next state of the view (slide) - Slide : Slide your finger or mouse from left to right (forward) or from left to right (back) to change presentation view (slide) - ActionBar : slide your finger or mouse on the top of the screen from up to down to show the ActionBar or from down to up to hide the ActionBar (inside : button "return to the editor" ) |
| other |
|
- Gap : the vertical (for HGroup) or horizontal (for VGroup) space between components, in pixels |
